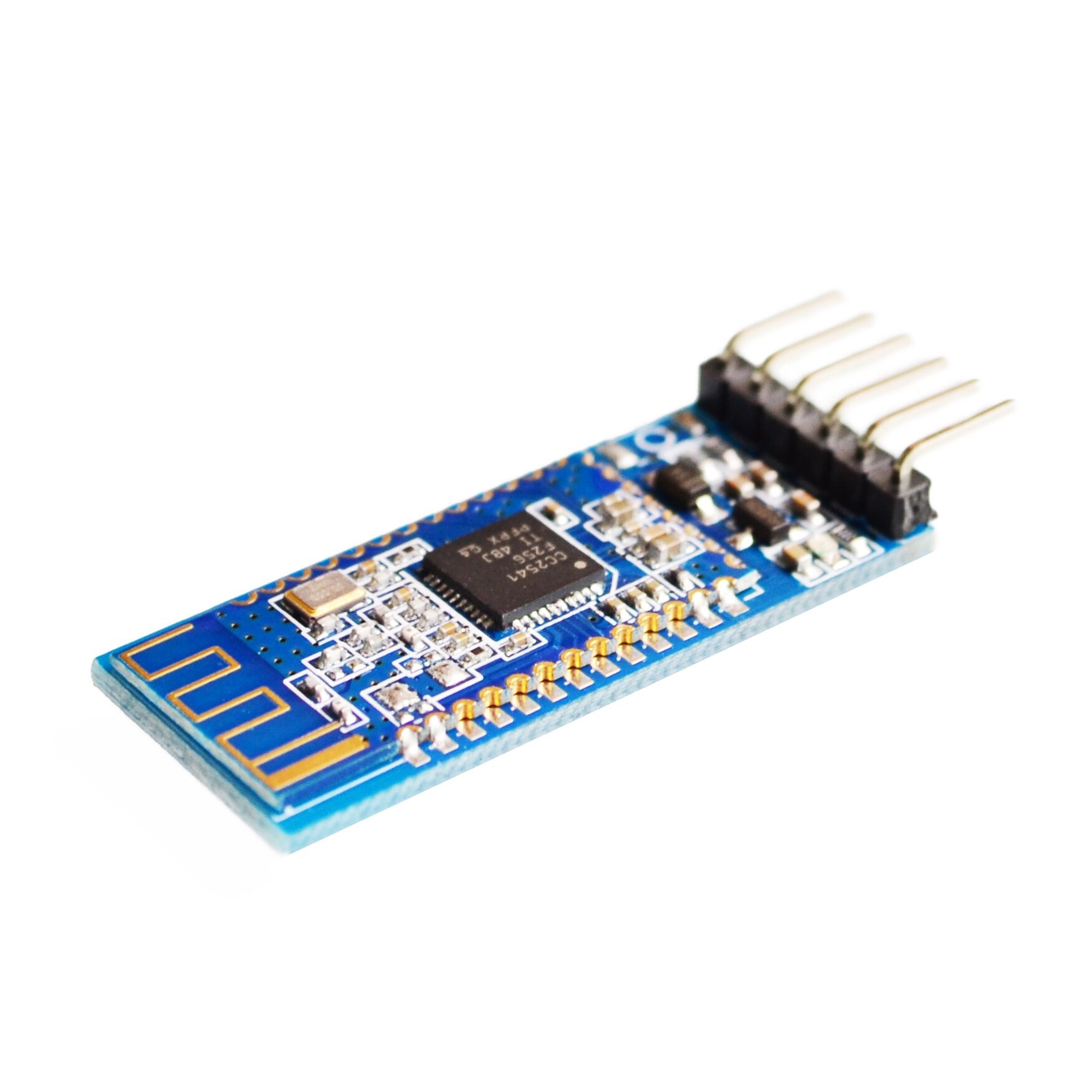

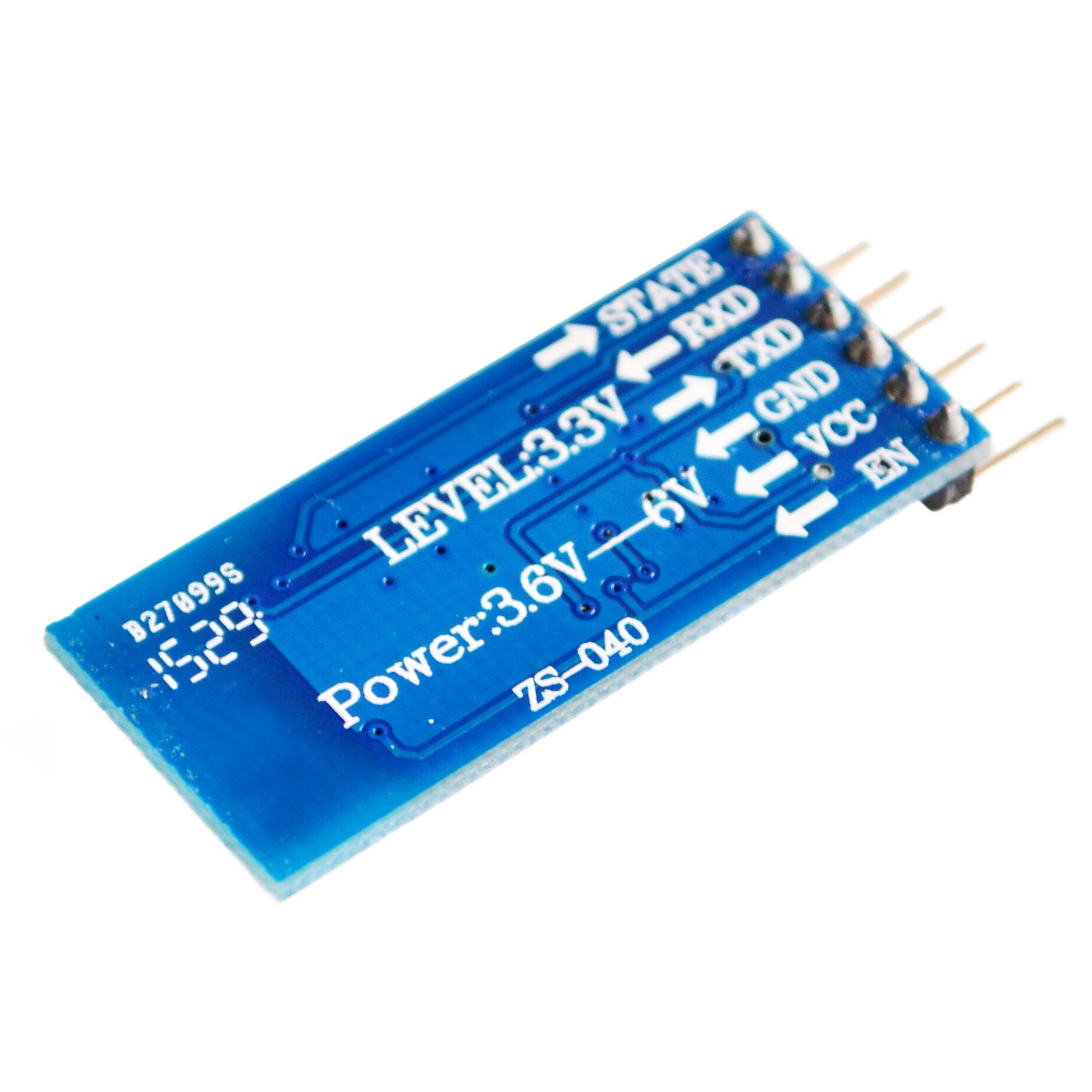

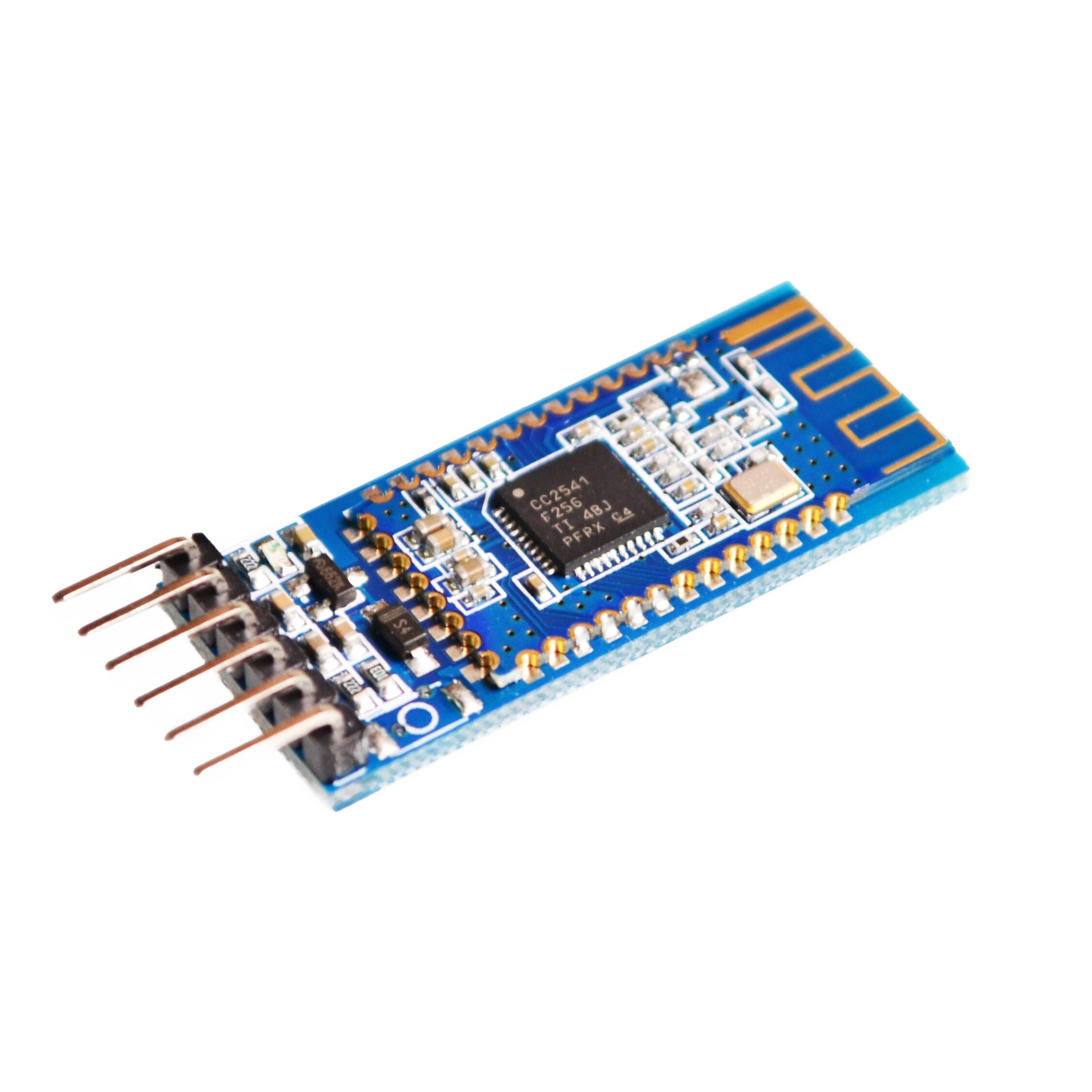

AT-09 Bluetooth 4.0 CC2540 CC2541 Serial Wireless Module

โมดูล Bluetooth 4.0 Bluetooth 4.0 BLE Module

Bluetooth 4.0 BLE เป็นโมดูล Bluetooth 4.0 ใช้ชิฟ CC2541 จาก TI เป็นโมดูลแบบบัดกรีติดแผ่นปริ๊นสำหรับงานออกแบบ PCB ครบทุกฟังก์ชัน ของ Bluetooth 4.0 BLE ทำงานแบบ Serial UART ใช้คำสั่ง AT Command ในการควบคุม รองรับกับ IPhone , IPAD และ Android เวอร์ชัน 4.3 ขึ้นไป

ข้อมูล โมดูล Bluetooth 4.0 Bluetooth 4.0 BLE Module

This is a SMD BLE module used in our BLE Bee and Xadow BLE. It is based on TI cc2541 chip, enables robust network nodes to be built with low total bill-of-material costs and highly suited for ultralow power consumption systems. The module is small and easy to use, with the preprogrammed firmware of manufacturer, you could quickly build BLE communications via its AT command. Supporting BLE communications with iphone, ipad and Android 4.3.

Features

• Bluetooth protocol: Bluetooth Specification V4.0 BLE
• Working frequency: 2.4 GHz ISM band
• Interface way: a serial port
• Open environment within 30 meters can realize communication between modules
• To send and receive no byte limit between modules
• Modulation method: GFSK (Gaussian Frequency Shift Keying)
• Transmission power: - DBM, 23-6 DBM, 0 DBM, 6 DBM, can be modified by the AT command
• use TI CC2541 chip, configuration space of 256 KB, support the AT command, the user can according to need to
  change the role (master, slave mode) and the serial port baud rate, name of equipment, matching parameters such as passwords, use agile.
• power supply: + 3.3 VDC 50 mA
• working temperature: - 5 ~ + 65 Centigrade

ข้อมูลเพิ่มเติม โมดูล Bluetooth 4.0Bluetooth 4.0 BLE Module

• http://www.seeedstudio.com/wiki/Bluetooth_V4.0_BLE_Module
