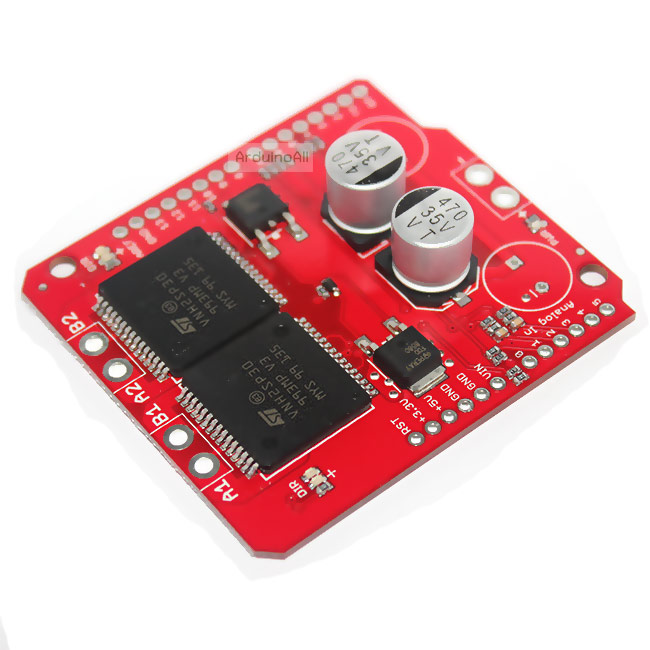

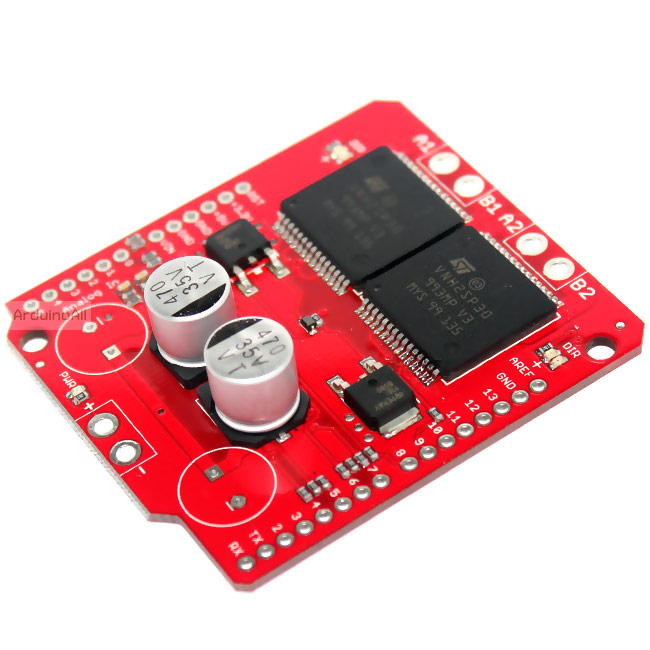

Monster Moto Shield VNH2SP30 stepper motor driver module 30A for arduino
บอร์ด Monster Moto Arduino Shield สำหรับขับมอเตอร์ใช้ไอซีเบอร์ VNH2SP30 สามารถขับกระแสได้สูงถึง 30A

ข้อมูล Monster Moto Shield VNH2SP30 stepper motor driver module high current 30A for arduino


Monster Moto Shield

Description: This is essentially a ramped up version of our Ardumoto motor driver shield. For this monster shield we've replaced the L298 H-bridge with a pair of VNH2SP30 full-bridge motor drivers. We've also beefed up the support circuitry so this board is capable of driving a pair of high-current motors! The VIN and motor out are pitched for our 5mm screw terminals (not included), making it easy to connect larger gauge wires.

Note: When using this board in extreme high-demand applications it may be necessary to improve thermal performance with a heat-sink or fan and to solder the wires directly to the board instead of using a screw terminal (in addition to the myriad other complications present in a high-current system) However, when using the board at currents up to 6A the chips will barely become noticeably warm.cjmcu

Features:
  • Voltage max: 16V
  • Maximum current rating: 30 A
  • Practical Continuous Current: 14 A
  • Current sensing available analog pin
  • MOSFET on-resistance: 19 mΩ (per leg)
  • Maximum PWM frequency: 20 kHz
  • Thermal Shutdown
  • Undervoltage and Overvoltage shutdown

ข้อมูลเพิ่มเติม Monster Moto Shield VNH2SP30 stepper motor driver module high current 30A for arduino
