RGB and Gesture Sensor

ดููตัวอย่างการใช้งานได้ที่  https://www.sparkfun.com/products/12787

Description:

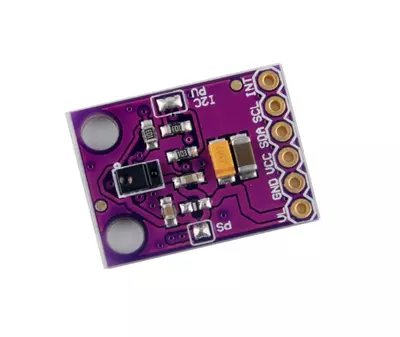

• This is the GY-9960 RGB and Gesture Sensor, a small breakout board with a built in GY-9960 sensor that offers ambient light and color measuring, proximity detection, and touchless gesture sensing
• With this RGB and Gesture Sensor you will be able to control a computer, microcontroller, robot, and more with a simple swipe of your hand!
• This is, in fact, the same sensor that the Samsung Galaxy S5 uses and is probably one of the best gesture sensors on the market for the price
• The GY-9960 is a serious little piece of hardware with built in UV and IR blocking filters, four separate diodes sensitive to different directions, and an I2C compatible interface
• Size: approx.20mm*15.3mm*3mm

Specification:

• Power supply: 3.3 v
• Communication: IIC communication protocol

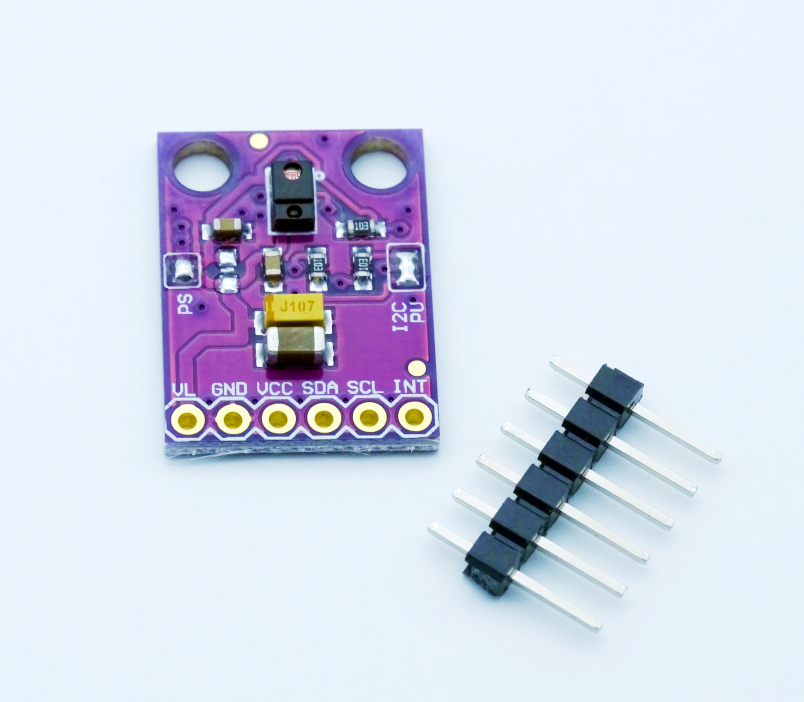

• For your convenience we have broken out the following pins:
• VL (optional power to IR LED)
• GND (Ground)
• VCC (power to GY-9960 sensor)
• SDA (I2C data)
• SCL (I2C clock)
• INT (interrupt)
• Each GY-9960 also has a detection range of 4 to 8 inches (10 to 20 cm)
