Arduino Mega2560 Rev3 + Free USB Cable

Arduino is an open-source physical computing platform based on a simple i/o board and a development environment that implements the Processing/Wiring language. Arduino can be used to develop stand-alone interactive objects or can be connected to software on your computer (e.g. Flash, Processing, MaxMSP). The open-source IDE can be downloaded for free (currently for Mac OS X, Windows, and Linux).

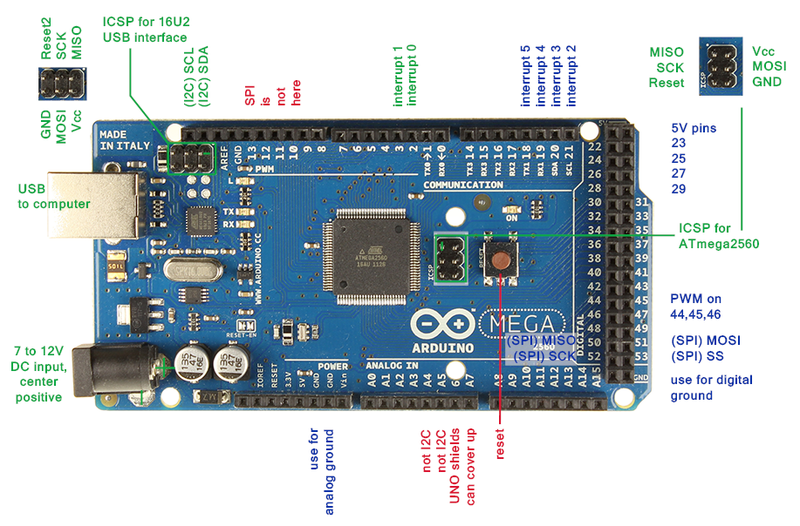

The Arduino Mega is a microcontroller board based on the ATmega2560. It has 54 digital input/output pins (of which 14 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. The Mega is compatible with most shields designed for the Arduino Duemilanove or Diecimila.

Additional features coming with the R3 version are:

• ATmega16U2 instead 8U2 as USB-to-Serial converter.
• 1.0 pinout: added SDA and SCL pins for TWI communication placed near to the AREF pin and two other new pins placed near to the RESET pin, the IOREF that allow the shields to adapt to the voltage provided from the board and the second one is a not connected pin, that is reserved for future purposes.
• stronger RESET circuit.

Technical Specifications

Documents:

• Arduino Home Page
• Schematic
• Programming Reference
• Arduino Forum
• Arduino Uno USB Driver

สินค้าประกอบด้วย

• EADN015 - Arduino Mega 2560 Rev3 x 1
  (Download ข้อมูลการใช้งานได้จาก Documents)
