GY-530 VL53L0X Laser

ข้อมูล GY-530 VL53L0X Laser ranging and gesture  เลเซอร์วัดระยะทางและตรวจจับท่าทาง

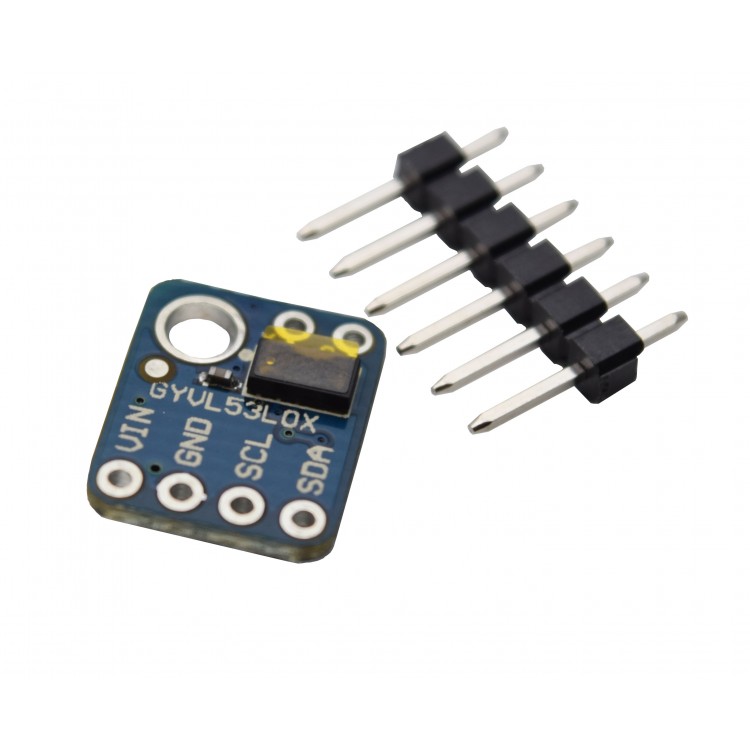

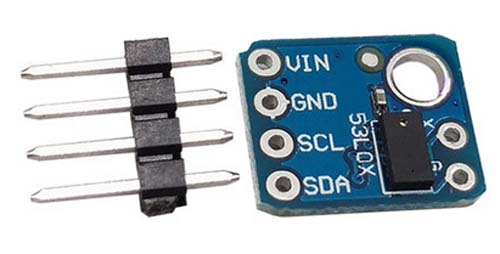

This sensor is a carrier/breakout board for ST’s VL53L0X laser-ranging sensor, which measures the range to a target object up to 2 m away. The VL53L0X uses time-of-flight measurements of infrared pulses for ranging, allowing it to give accurate results independent of the target’s color and surface. Distance measurements can be read through a digital I²C interface. The board has a 2.8 V linear regulator and integrated level-shifters that allow it to work over an input voltage range of 2.8 V to 5.5 V

Infrared ranging module

• Model: GY-VL53L0X
• Use chip: VL53L0X
• Power supply: 2.8-5v
• Communication: IIC communication protocol (fully compatible with 3-5v system)
• Module size: 10.5mm * 13.3mm, mounting hole 3mm
• Ultra-small size for easy installation in a narrow space

GY-530 VL53L0X Laser ranging and gesture  เลเซอร์วัดระยะทางและตรวจจับท่าทาง

• ไลบารีและตัวอย่างการใช้งาน GY-530 Arduino
• DataSheet VL53L0X
